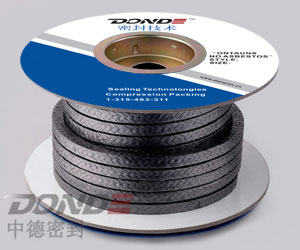

High
Strength Graphite Fibre Braided Packing
Item No.:ZD-P1101/02/03/04
Description:Reinforced
flexible graphite braided packing is the most effective composite parts
for solving problems.It is reinforced with five stainless steel wire or
innconel wire. This kind of graphite packing is tolerant to high temperature
and high pressure steam or water.
Main Specification:
|
Temperature |
1650¡æ Non oxidizing condition(Non
oxidizing condition) |
|
650¡æ Steam£¨In the steam£© |
|
450¡æ Oxidizing condition£¨oxidizing
condition£© |
|
-204¡æ Cryogenics £¨low temperature£© |
|
Pressure |
9-45MPa |
|
PH range |
0-14 |
|
Linear speed |
2~15M/S |
|
Size |
3*3mm-60*60mm£¨or as request£© |
Parameter:
Note: 3X3 is twisting instead of weaving.
|
Cross-section area
(mm) |
Density
£¨g/cm3£© |
g/m |
Cross-section area
(mm) |
Density
£¨g/cm3£© |
g/m |
|
3X3 |
1.25~1.30 |
12 |
8X8
|
1.15~1.25 |
97 |
|
4X4 |
1.25~1.30 |
21 |
9.5X9.5
|
1.15~1.25 |
108 |
|
4.7X4.7 |
1.25~1.30 |
31 |
10X10
|
1.15~1.25 |
120 |
|
5X5 |
1.25~1.30 |
32 |
11X11
|
1.15~1.25 |
145 |
|
6X6 |
1.25~1.30 |
45 |
12X12
|
1.15~1.25 |
172 |
|
6.5X6.5 |
1.25~1.30 |
53 |
12.5X12.5
|
1.15~1.25 |
194 |
|
7X7 |
1.25~1.30 |
82 |
14X14
|
1.15~1.25 |
235 |
|
15X15 |
1.15~1.25 |
270 |
24X24
|
1.0~1.10 |
615 |
|
16X16 |
1.10~1.20 |
294 |
25X25
|
1.0~1.10 |
677 |
|
17.4X17.4 |
1.10~1.20 |
348 |
28X28
|
1.0~1.10 |
823 |
|
18X18 |
1.10~1.20 |
373 |
30X30
|
1.05~1.10 |
945 |
|
19X19 |
1.05~1.15 |
397 |
32X32
|
1.05~1.10 |
1075 |
|
20X20 |
1.05~1.15 |
440 |
35X35
|
1.00~1.05 |
1255 |
|
22X22 |
1.05~1.15 |
532 |
40X40
|
0.95~1.05 |
1600 |
How to Order£º
|
Item |
Order Code |
|
Cotton fibre reinforced graphite
packing |
ZD-P1100 |
|
Glass fibre reiforced graphite
packing |
ZD-P1101 |
|
Stainless steel wire reinforced graphite
packing |
ZD-P1102 |
|
Nickel wire reinforced graphite
packing |
ZD-P1103 |
|
Inconnel wire reinforced
graphite packing |
ZD-P1104 |
|
Innconel mesh jacket graphite
packing |
ZD-P1105 |
|
High strength graphite packing for
temperature and high pressure |
ZD-P1106 |
|
PTFE impregnated graphite packing |
ZD-P1107 |
|
No ignition loss graphite packing |
ZD-P1108 |
|
Expanded graphite packing with
carbon fiber corners |
ZD-P1109 |
For more information,please
contact with us directly,thanks£¡
|
