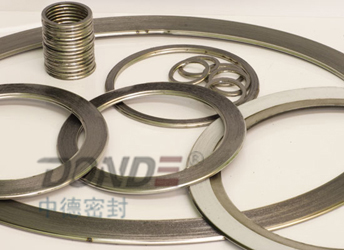

Description: Spiral wound gasket for heat exchangers are designed for heat exchangers, it can be with or without inner and outer rings.This style spiral wound gasket is for heat exchangers where pass bars are required. The outer portion is of standard spiral wound construction. The rib portion is normally of single or double jacketed style.
Typical
Applications
The gaskets which with outer
rings are primarily designed for
TEMA male and female flanges.
Gaskets are custom built to
suit the design conditions of
individual heat exchanger
vessels.
Prime Features
The outer wound nose to ensure
correct sealing element location
in the flange recess.
站/中德英文/My%20Web%20Sites/IMAGE/YEMIAN/hua.jpg){kind=small}
A spiral wound sealing element
to ensure a positive seal under
fluctuating temperature and
pressure conditions.
A solid metal inner ring to
protect the sealing element and
act as a compression stop.
Can be supplied with pass
partition bars in any
configuration. Pass bars are
secured to the inner ring can be
supplied in either solid metal
or double jacketed construction.
Specifications
Spiral wound with inner or outer
or with partition ribs acts a
pass bars. Manufactured to
customer design.
